Sound Assembly Tool : Interactive sound & fire assembly tool
Select your known requirements or wall component preferences to filter a list of tested assemblies. Once you find your solution, download the Summary Tests Reports with design details.
Assemblies Found: 16
-

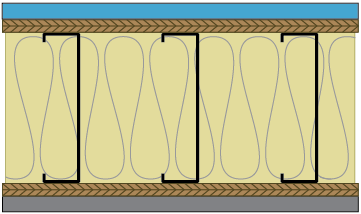

PGD-546-565-16
Sound STC 45 NOAL 24-06046 Fire 1 hr. -

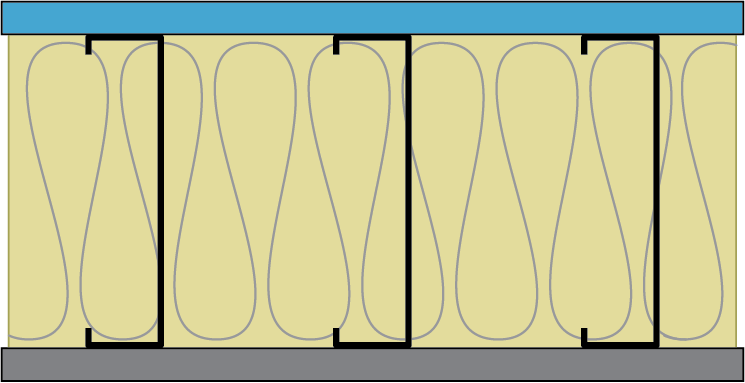

PGD-546-595-16
Sound STC 47 NOAL 21-0361 Fire 1 hr.
-
PGD-W6-467-16
Sound STC 49 NOAL 21-1047 Fire 1 hr.
-
PGD-33-513-16
Sound STC 50 NOAL 23-09019 Fire 1 hr.
-

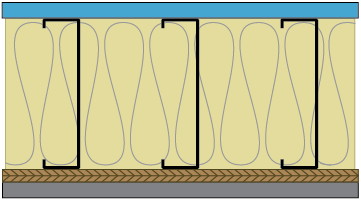

PGD-556-447-16
Sound STC 50 NOAL 24-0643 Fire 1 hr. -
PGD-54-526-16
Sound STC 51 NOAL 18-0911 Fire 1 hr.
-
PGD-W6-565-24
Sound STC 53 NOAL 21-1052 Fire 1 hr.
-
PGD-18-484-16
Sound STC 54 NOAL 23-02001 Fire 1 hr.
-

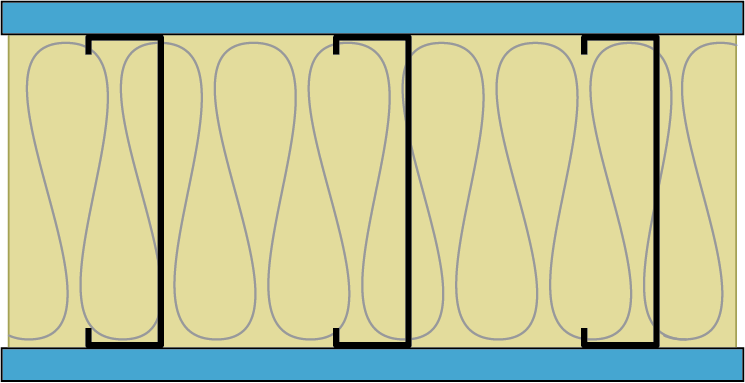

PGD-546-425-16
Sound STC 54 NOAL 21-0362 Fire 1 hr.
-
PGD-18-484-24
Sound STC 55 NRC-TLA-05-050 Fire 1 hr.
-

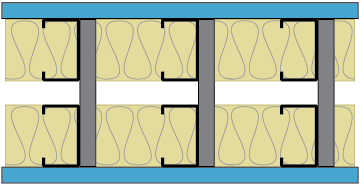

PGD-182D-522B-16
Sound STC 56 NOAL 22-1024 Fire Non-Rated -
PGD-W-465-24
Sound STC 56 NRC TLA-04-052 Fire 1 hr.
-
PGD-W6-467-24
Sound STC 56 NOAL 21-1053 Fire 1 hr.
-
PGD-W-449-24
Sound STC 57 NRC TLA-04-035 Fire 1 hr.
-

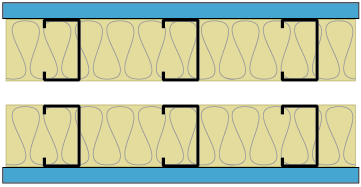

PGD-182D-522-16
Sound STC 58 NOAL 22-1023 Fire Non-Rated
