Sound Assembly Tool : Interactive sound & fire assembly tool
Select your known requirements or wall component preferences to filter a list of tested assemblies. Once you find your solution, download the Summary Tests Reports with design details.
Assemblies Found: 8
-

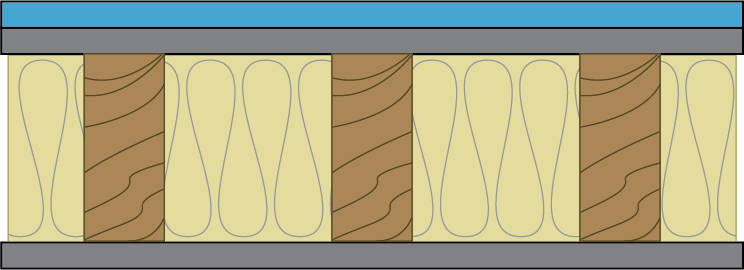

PGD-W-648-16
Sound STC 41 NOAL 20-0507 Fire Non-Rated
-
PGD-W-642-16
Sound STC 42 NOAL 20-0523 Fire Non-Rated
-
PGD-W-557-16
Sound STC 45 NOAL 20-0525 Fire Non-Rated
-

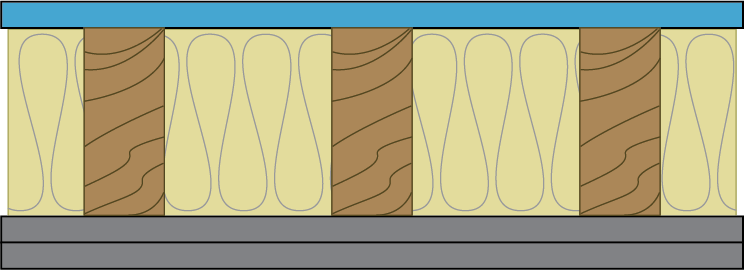

PGD-W-548-16
Sound STC 46 NOAL 20-0524 Fire Non-Rated
-

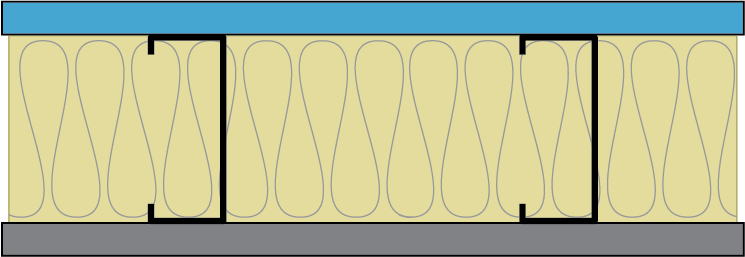

PGD-15-590-24
Sound STC 50 OL-TL-12-0515 Fire Non-Rated
-

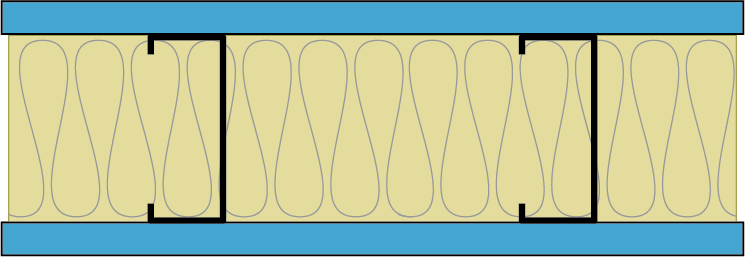

PGD-18-590-24
Sound STC 50 NOAL 22-0343 Fire Non-Rated
-

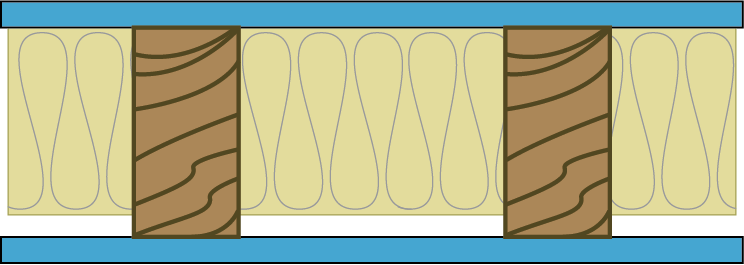

PGD-W-557-24
Sound STC 52 RAL-TL-07-022 Fire Non-Rated
-

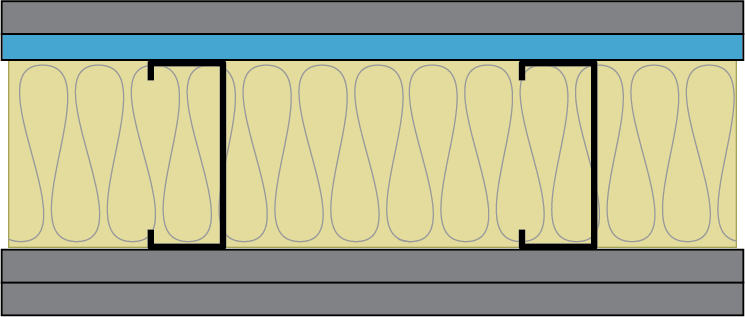

PGD-18-466-24
Sound STC 56 RAL-TL-07-031 Fire 1 hr.
